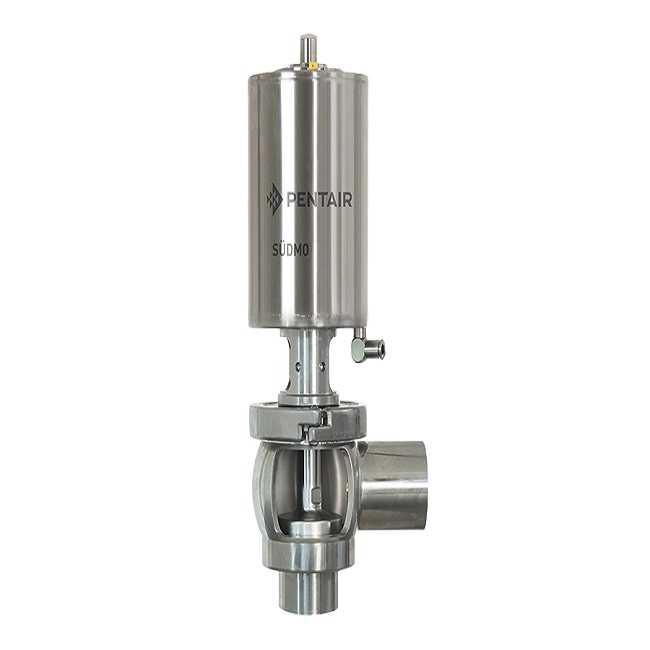

Südmo Single Seat Valve SVP Select
Typical applications for control valve operation are flow rate control, dosing of liquids and gases, pressure regulation in liquid piping, split-range controls, level control in buffer tanks and carbon dioxide dosing for beverages.
Pentair Südmo’s SVP Select Regulating Valve offers many CV value options and both linear and equal percentage, which allows each application to be totally customized using our standard components.
Adjustment of varying process parameters can be accomplished by modifying individual parts. There is no need to replace a complete valve. The range is supplemented with alternatives for mixing and distribution of media. The concept combines two individual control valves into a three-way valve, which provides a space-saving and cost-effective alternative.
Application
- Aseptic valve option with P³ sleeve
- Regulation with linear or equal percentage control plug (can also be exchanged for one another subsequently)
- As standard there are three different KV values available per nominal diameter (further KV values on request)
- Subsequent modification of KV values by replacing plug and seat possible (for this separable connections must be provided on all connection ports)
- Control plug with or without tight closure function (metal seat or O-ring sealing)
- High precision membrane actuator with electropneumatic position controller
- SVP standard actuator with “8692” control head (cost-effective alternative to the membrane actuator)
- “8692” control head can also be used with the optional PID-Controller in standalone operation e.g. in connection with a temperature or flow rate meter
