Südmo Intellitop 2.0

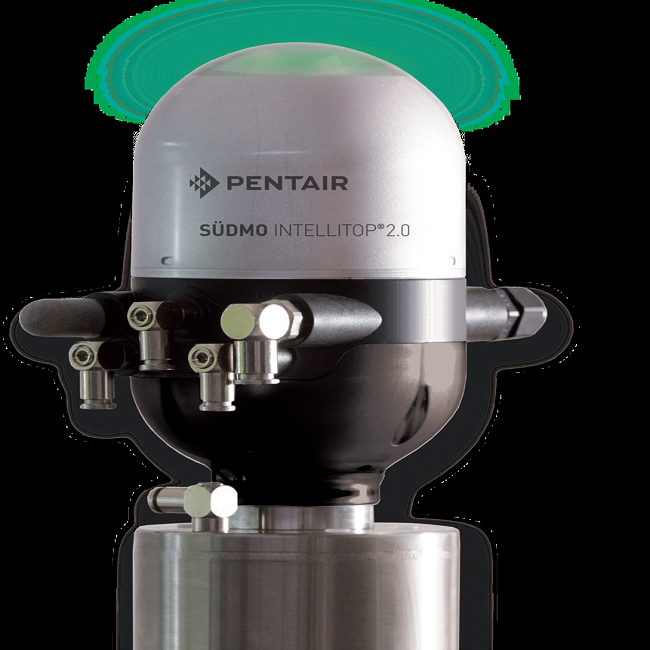

Pentair Südmo’s IntelliTop 2.0 control unit combines process valve triggering and monitoring in one unit. Located on the process valves, these decentralized control heads make it easy to reduce hose and cable lengths, which simplifies system design and reduces installation work. The valve position and communication faults are easy to see from any angle or distance.

The green, yellow and red signal colors can be assigned for the specific needs of each process system. The IntelliTop 2.0’s- path measuring system tracks up to three of the process valve’s switching positions. Simple set-up with the three programmable buttons assures fast and reliable process start-up. The convenient service function allows fast and reliable process valve servicing with the control head being always closed for protection. The small size of the IntelliTop 2.0 and its state-of-the-art industrial design give this system an appealing appearance while ensuring optimum external cleaning.

The name IntelliTop 2.0 is iconic not only for intelligence, but also flexibility, operator
friendliness, cost efficiency, and process reliability.
